LIMNMEDIA - Pan Bearing Stack Assembly for the Stop-Motion Camera Head

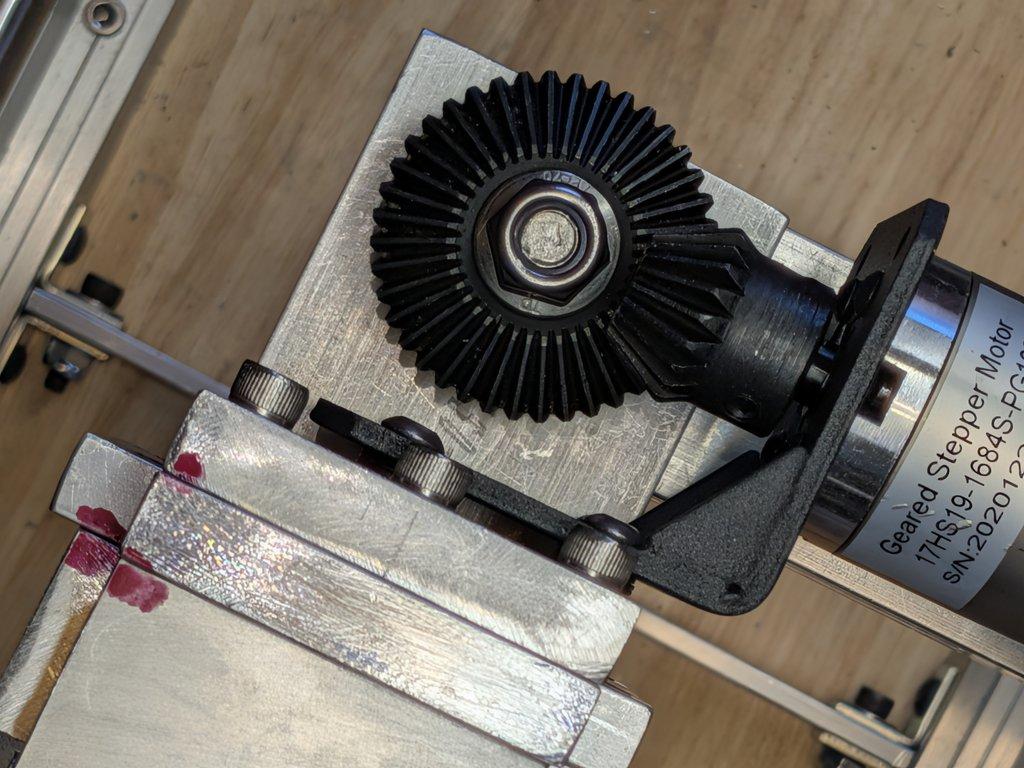

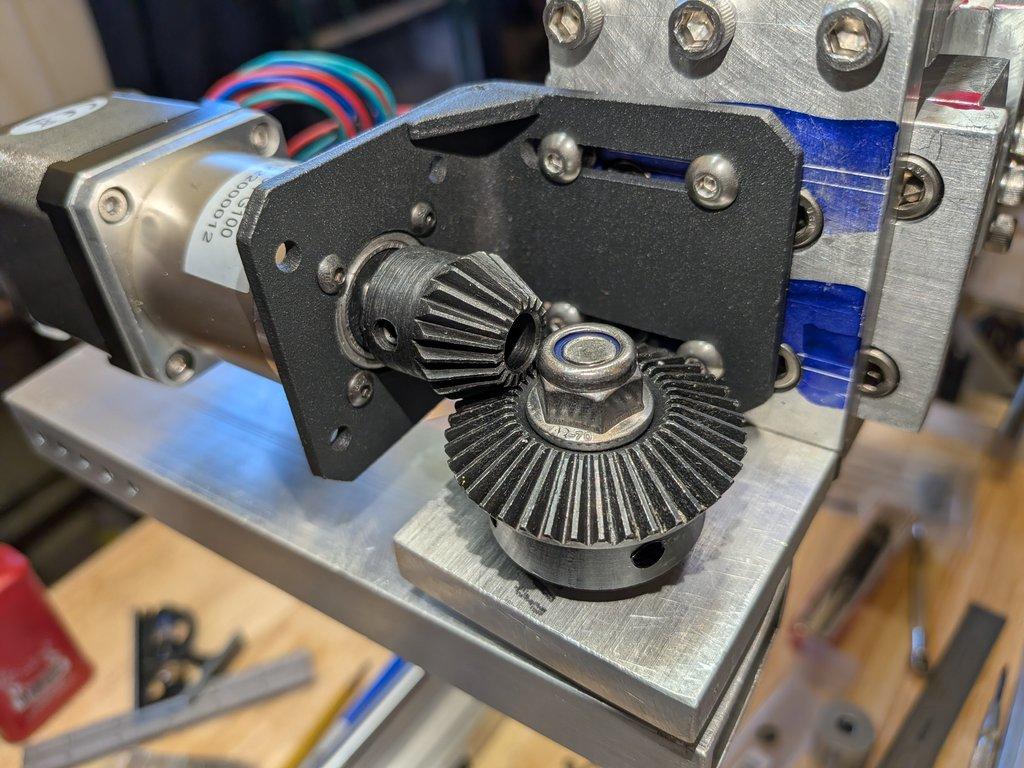

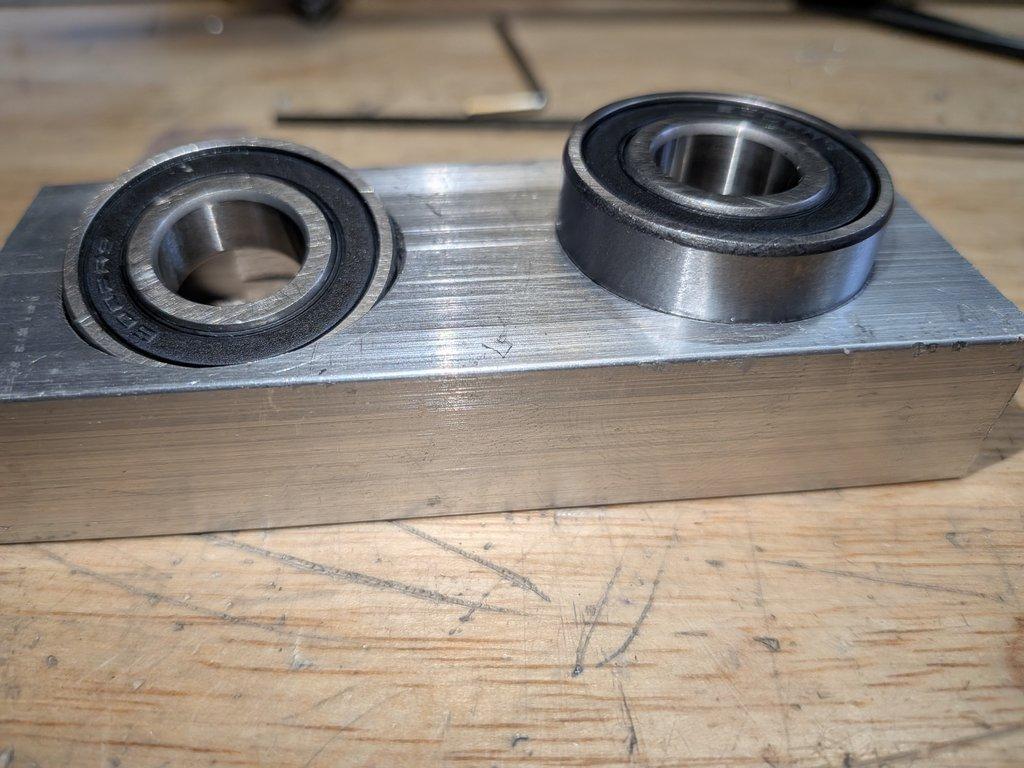

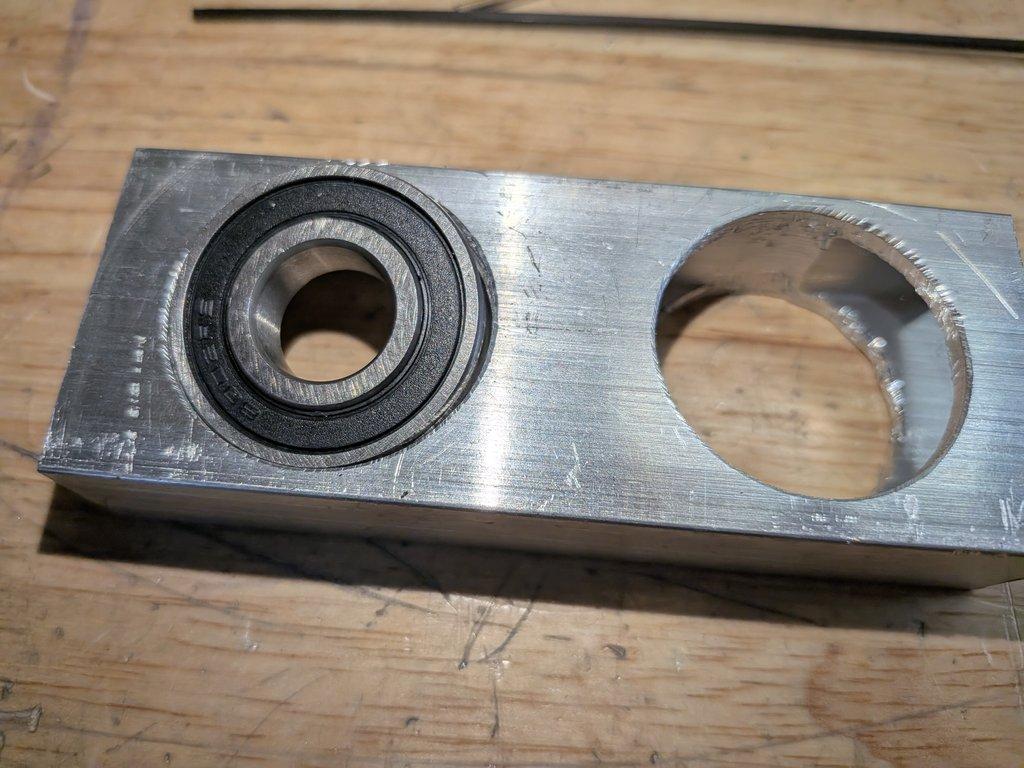

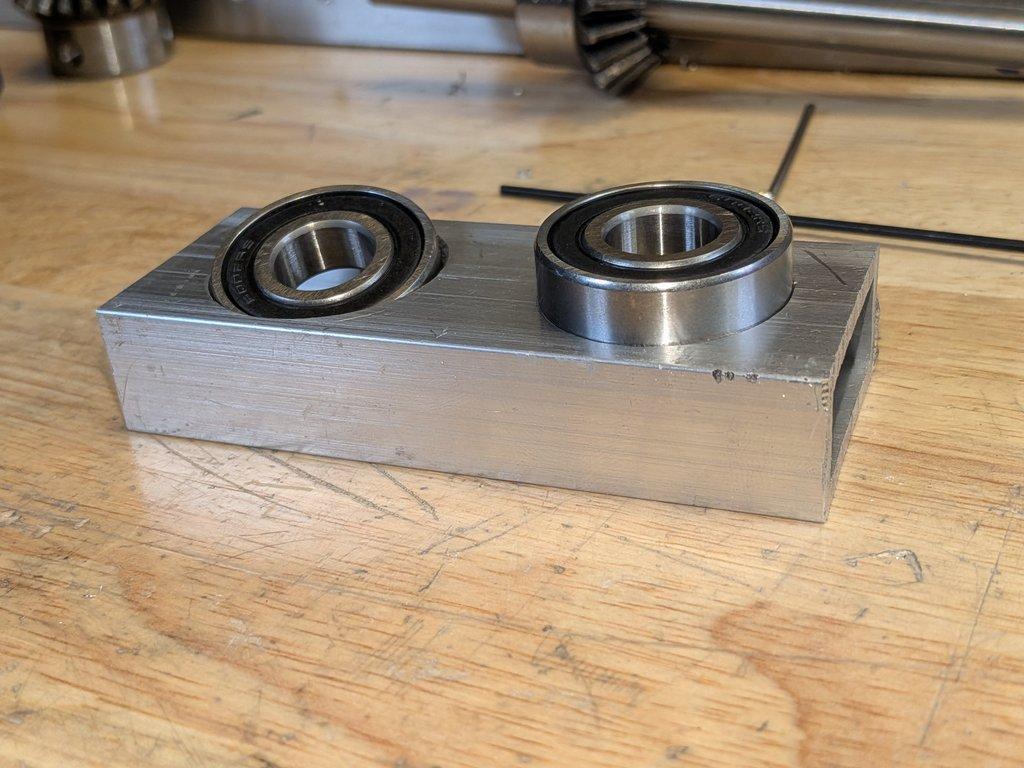

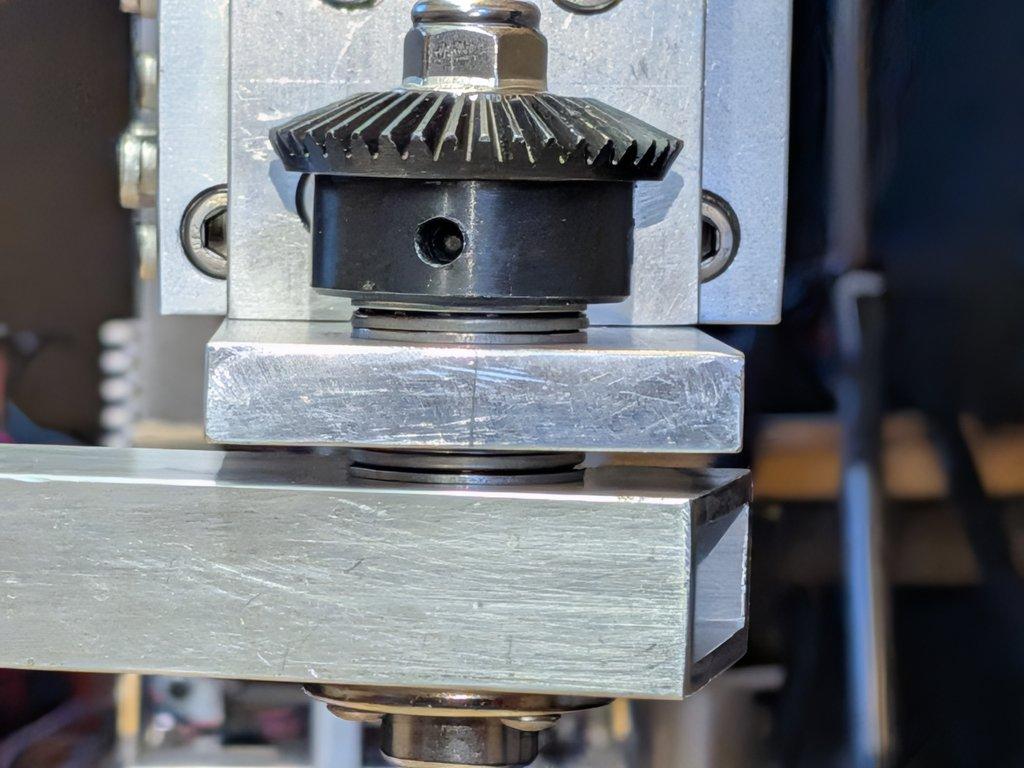

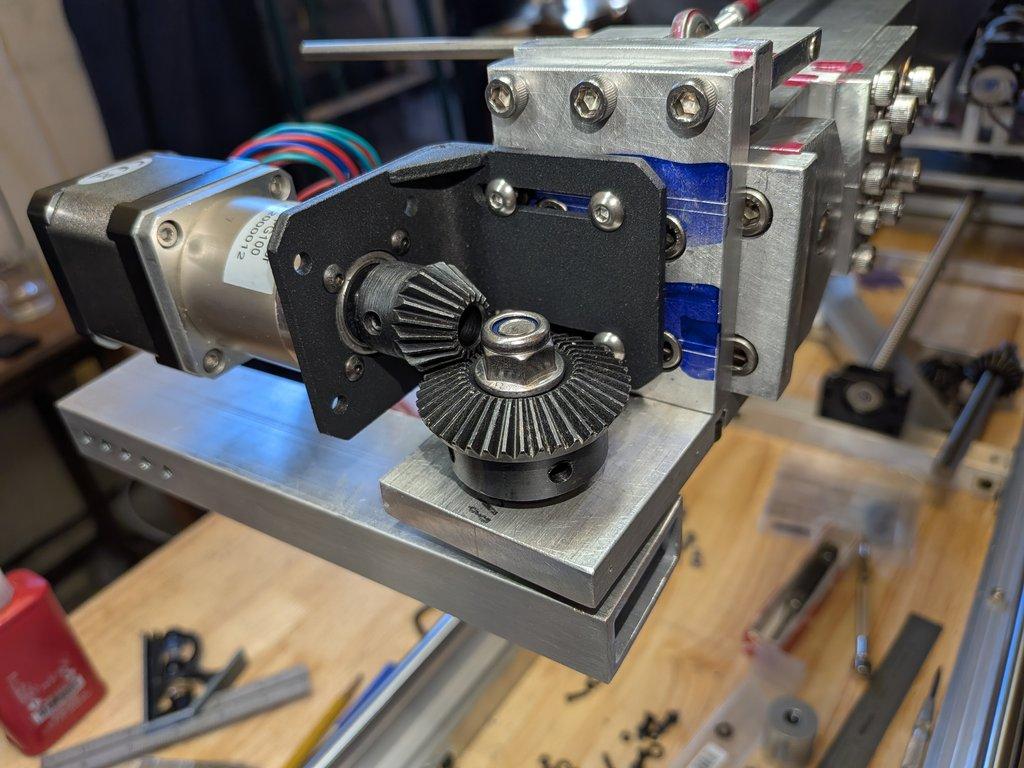

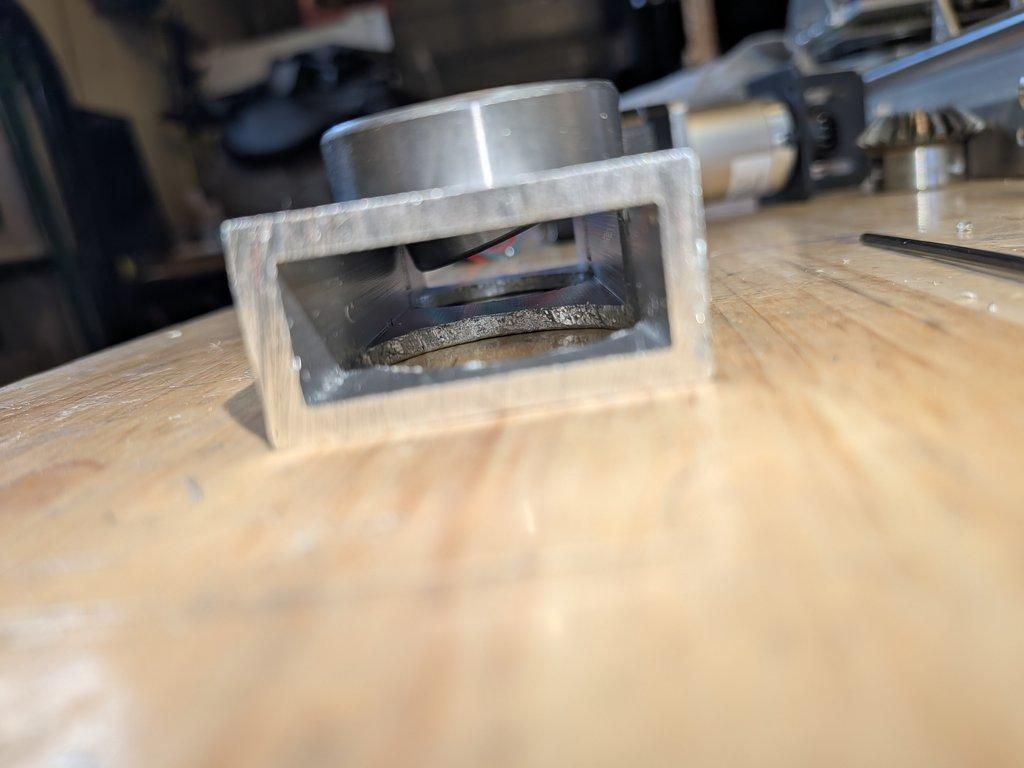

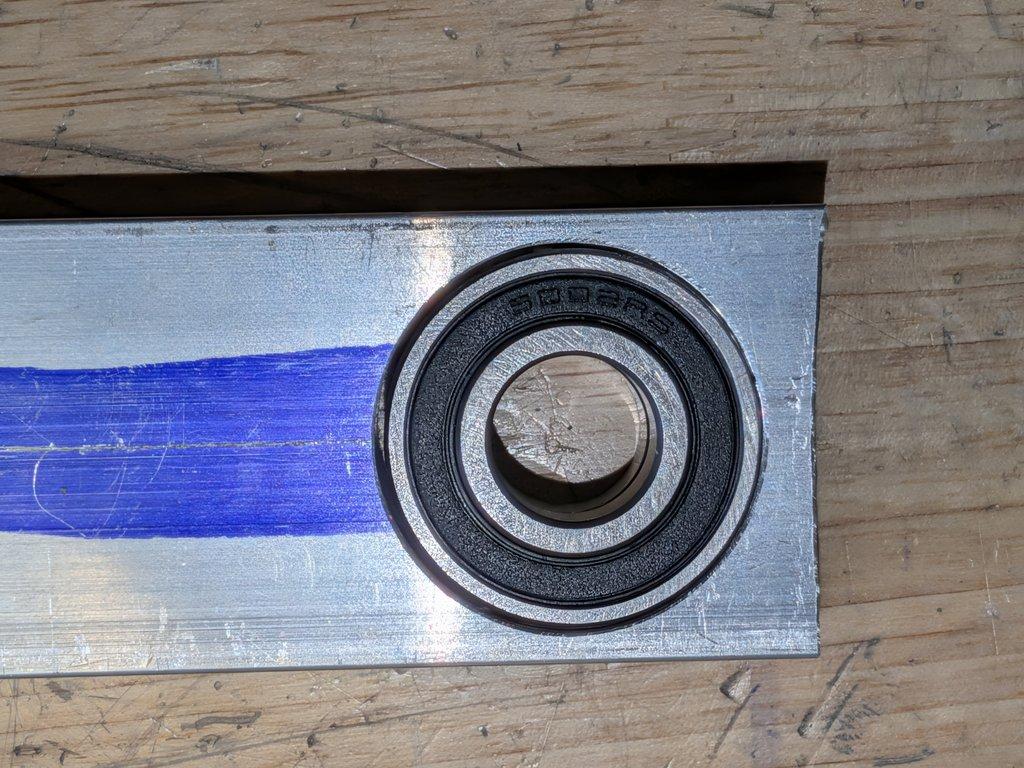

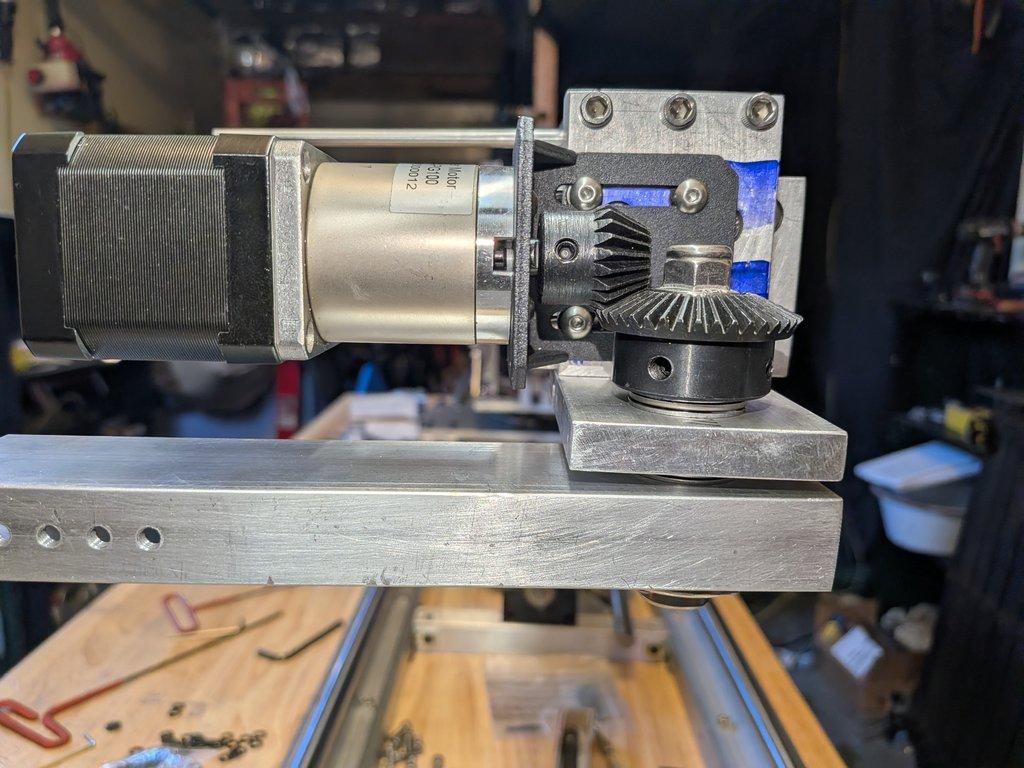

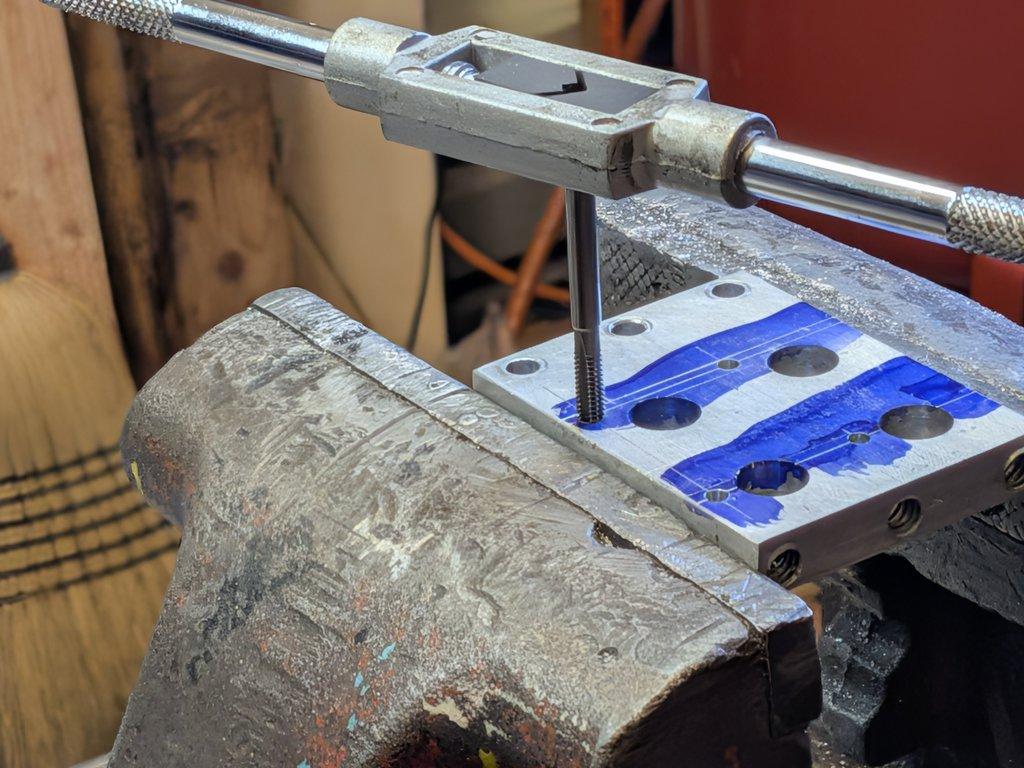

This set of images shows the pan bearing stack being assembled into the LIMNMOCO stop-motion crane camera head using a shoulder bolt, shaft collar, bearings, and the current prototype pan drive arrang
At this stage, the pan axis of the LIMNMOCO motion control system for stop-motion is still based on an off-the-shelf gear setup. The long-term plan is to replace this with a custom worm drive system designed specifically for stop-motion camera movement and repeatable motion control.
For now, this configuration works well enough to continue development while keeping the prototype affordable, compact, and buildable using commonly available parts.
Off-the-Shelf Components & Prototype Philosophy
The core philosophy behind the LIMNMOCO stop-motion crane prototype is:
- accessible parts
- low practical cost
- compact table-top scale
- open hardware construction
The purpose of the prototype is not to immediately create a fully optimized industrial motion control system.
The purpose is to demonstrate how a functional motion control system for stop-motion cinematography can be built using readily available components and practical fabrication methods.
That process naturally reveals where custom LIMNMEDIA-designed components provide the most value.
Gear Lash & Backlash Compensation
This current pan drive arrangement introduces additional backlash compared to a dedicated worm gear drive.
Fortunately, backlash compensation is already a familiar part of traditional stop-motion workflows and motion control systems. Animators and operators often work carefully around gear lash by maintaining consistent directional movement and accounting for system behavior during setup and calibration.
So while the current prototype configuration is not the final intended solution, it remains completely usable for testing, calibration, and development.
Why the Camera Head Matters
The pan and tilt stages are some of the most important parts of the LIMNMOCO stop-motion crane.
The crane structure itself provides:
- camera offset
- reach
- spatial movement
But the camera head provides:
- framing
- orientation
- camera animation
- controlled camera movement
This is where the motion control system directly affects the language of the shot.
The camera head can also function independently from the crane itself:
- mounted on a slider
- mounted on a rotator
- used as a standalone stop-motion motion control device
That flexibility is an important part of the LIMNMOCO system design.
Future Worm Drive Development
Future LIMNMEDIA worm drive designs are intended to improve:
- smoothness
- positional resolution
- backlash control
- rigidity
- compactness
At the same time, the system remains grounded in open hardware principles.
The goal is to keep the motion control system for stop-motion accessible:
- designs available openly
- builders able to fabricate their own versions
- optional refined parts available for tighter performance requirements
Notes
This stage of the LIMNMOCO stop-motion crane shows the transition from basic mechanical structure into a more complete motion control camera system.
The prototype continues to define:
- where off-the-shelf parts are sufficient
- where custom parts are justified
- and how the overall system integrates physical stop-motion cinematography with digital production workflows
Christopher Weinberg
Christopher Weinberg is the founder of LIMNMEDIA, where he develops motion control systems, production workflows, and educational tools focused on stop-motion and hybrid filmmaking. With over 15 years of experience in production, his work centers on making complex techniques more accessible through practical engineering and open development. He is currently building LIMNMOCO, a modular motion control system designed for flexible, real-world use.
