Fabrication

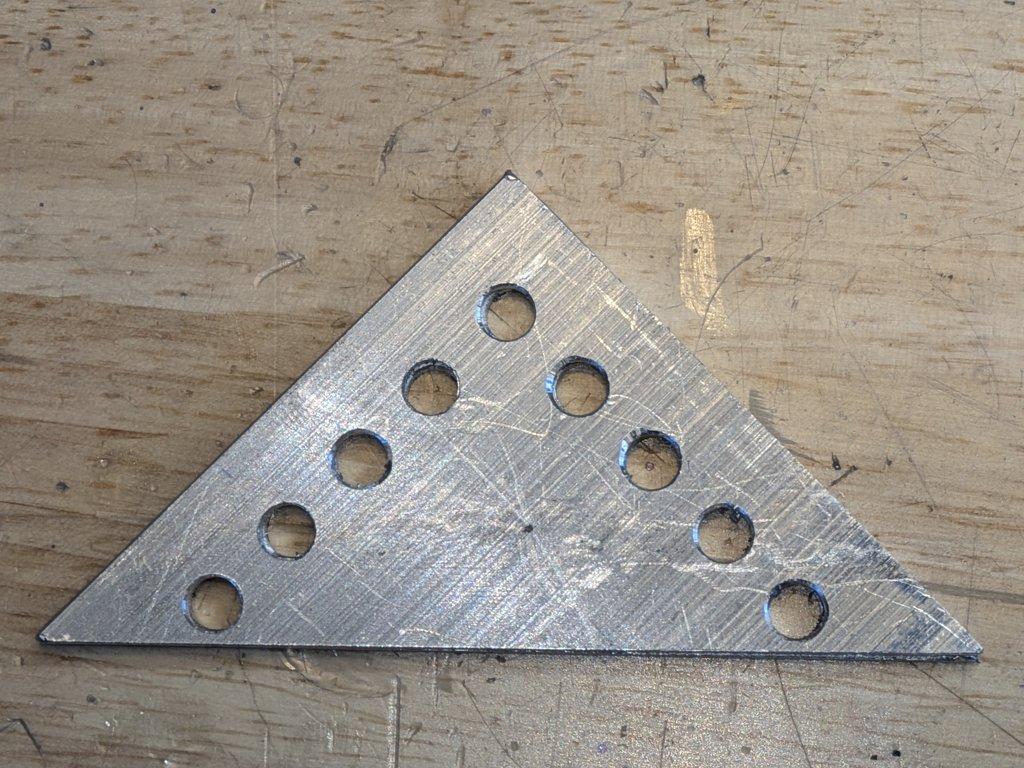

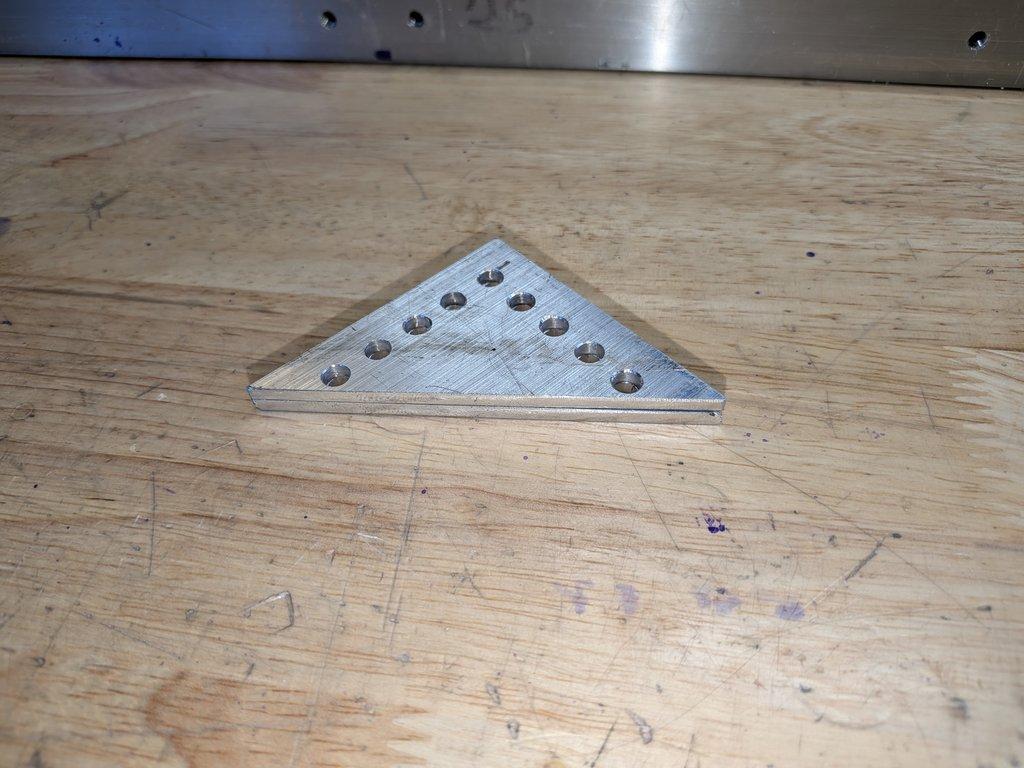

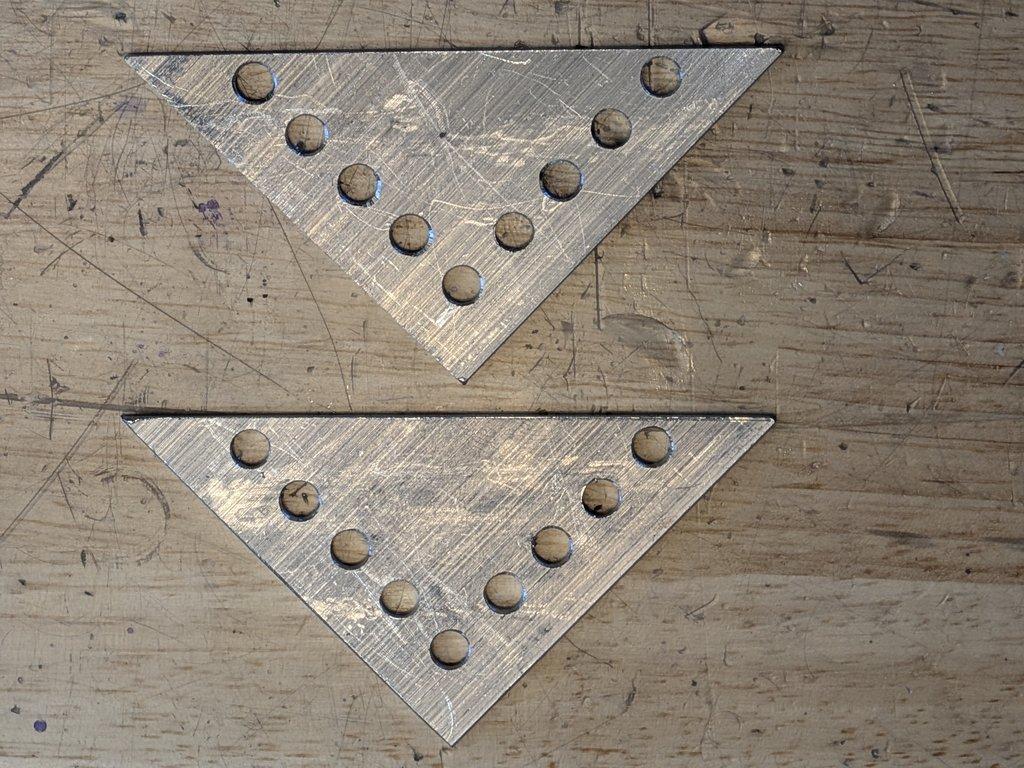

Each gusset has nine holes drilled into it, and those holes align with:

• each other
• the corresponding holes in the tubes

This is one of those cases where everything is very close together, so it’s not immediately obvious how well things line up—but once assembled, the screws thread in cleanly and the alignment is actually quite good.

You can still tell these were made by hand, but they’re consistent enough that everything comes together without forcing anything.

---

Notes

There’s one interesting detail in this layout.

Because of the spacing, one of the holes lands right on the 3/4” dimension, which corresponds to the wall/edge condition where one tube meets another.

Rather than trying to force a fastener into a compromised location, I chose to:

• skip that hole entirely

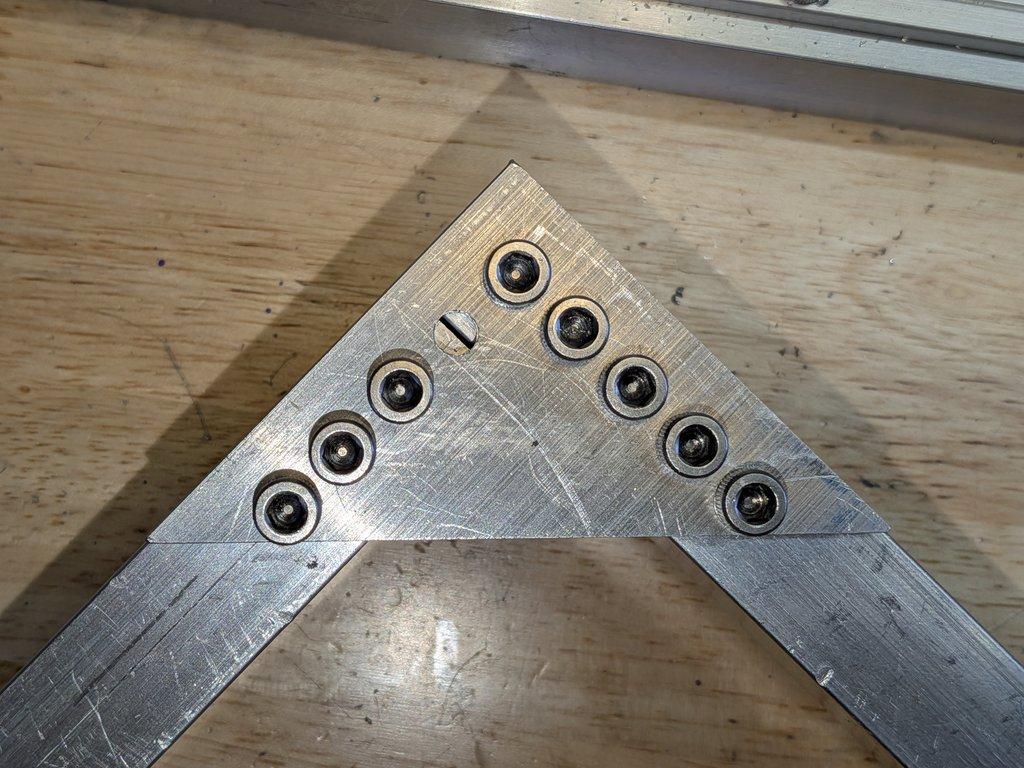

There’s a close-up in the images showing that missing fastener.

---

Context

This is one of those judgment calls you make during a build.

Not every planned hole needs to exist if:

• it weakens the material
• it interferes with another part
• or it doesn’t meaningfully add strength

---

Why This Matters

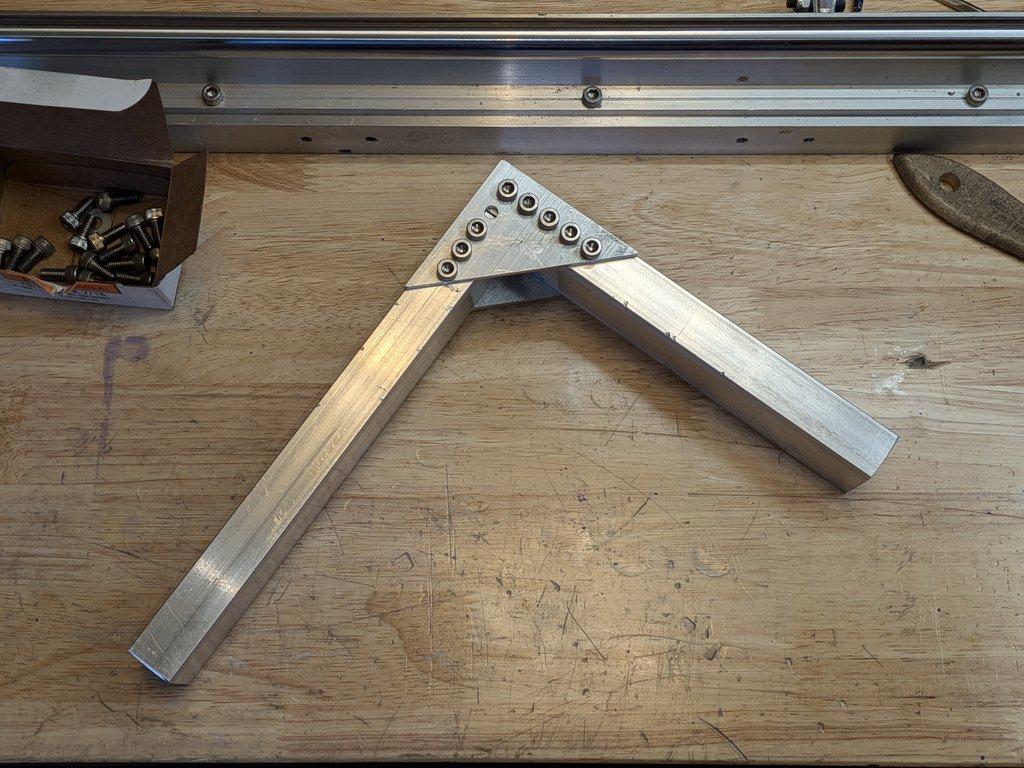

The overall result:

• holes align cleanly
• parts come together easily
• fasteners thread in by hand

That’s a good sign that the layout process is working.

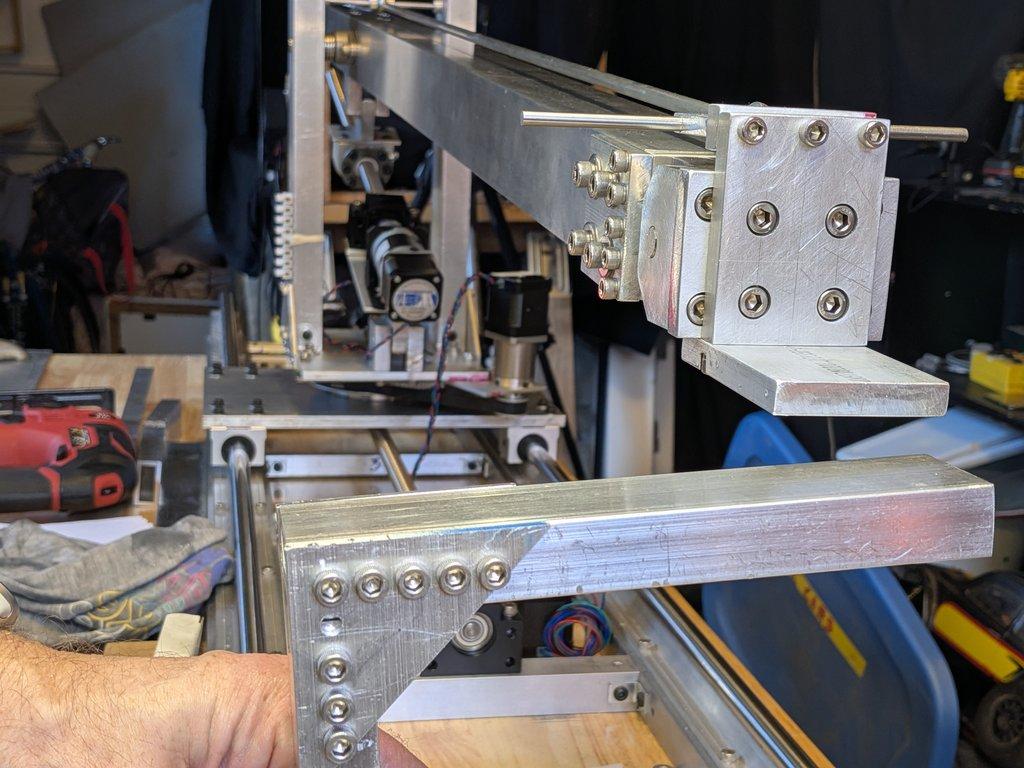

At the same time, the real test is still ahead.

Once the system is fully assembled—with:

• motors
• camera head
• actual load

we’ll see what this configuration really wants to do.
