LIMNMEDIA - Boom End Mockup: Hinge, Mount Blocks & Pan Drive

There’s a lot going on in a very small space here.

⸻

Process

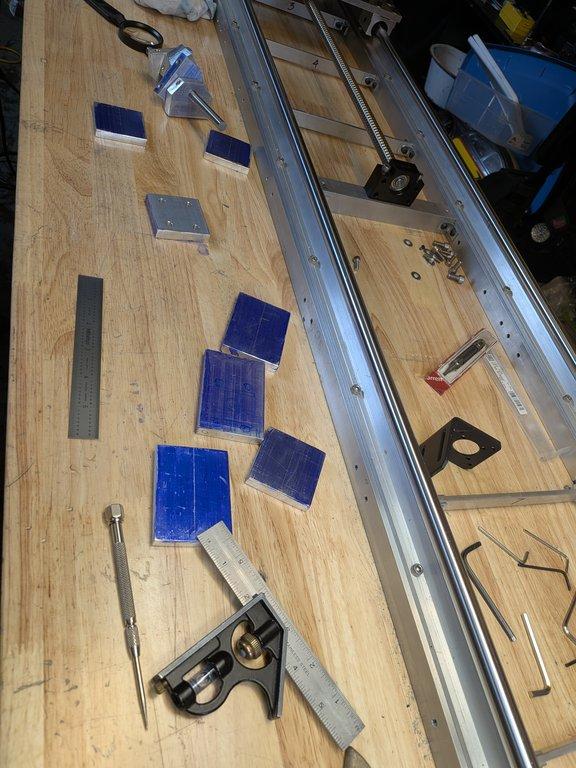

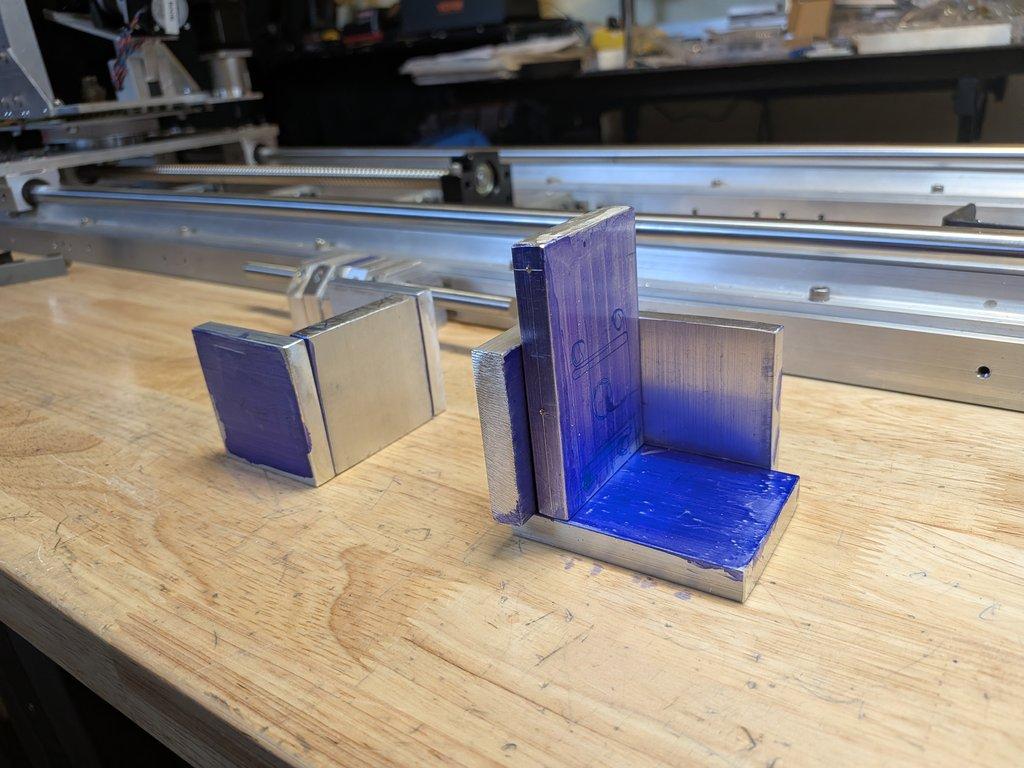

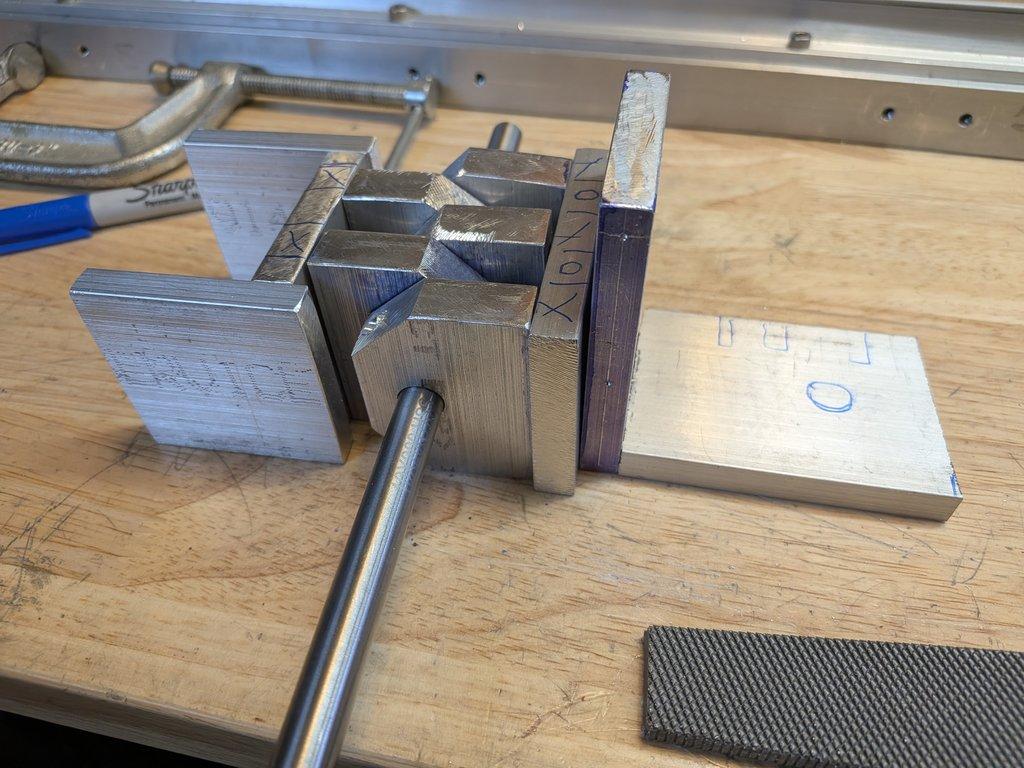

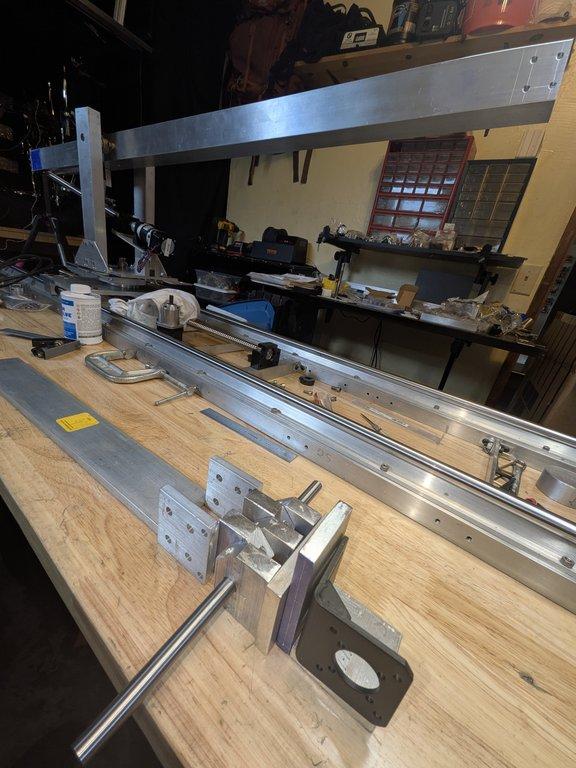

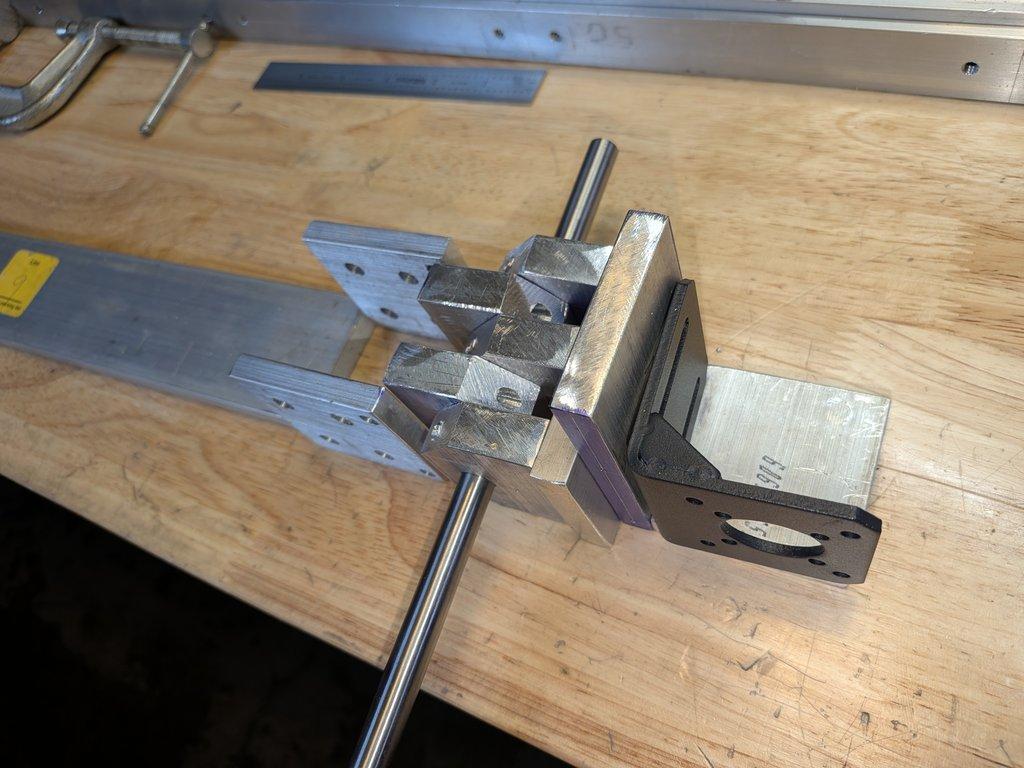

All the pieces are brought together and positioned as they would be in final assembly. The hinge is aligned with the mount blocks, and the pan drive transmission block is placed to see how everything stacks and relates.

Nothing is fully committed yet—this is about studying the layout:

• where fasteners will go
• how parts stack
• what clears and what doesn’t

With this many components meeting in one place, it becomes obvious pretty quickly that space is tight. There are a lot of screws passing through these blocks, and it’s very easy for them to start competing for the same space if you’re not careful.

So this step is slow. It’s about moving things around, checking clearances, and thinking ahead before drilling anything.

⸻

Notes

This is one of those steps where patience really matters.

It’s not just about making everything fit—it’s about making sure it fits in a way that can actually be assembled and disassembled later. It’s surprisingly easy to design something that goes together once, but is a nightmare to take apart or adjust.

A few things I’m paying attention to here:

• making sure fasteners don’t collide or interfere
• leaving room for tools (wrenches, hex keys)
• thinking about assembly order—what has to go in first, what gets blocked later

There’s also a bigger goal here: keeping everything buildable with basic tools. No special machining, no reliance on a machine shop—just straightforward fabrication that someone else could replicate.

That constraint actually helps guide decisions. It forces simpler, more thoughtful layouts.

⸻

LIMNMOCO Context

This is the “business end” of the crane starting to take shape.

Everything at this point connects:

• the boom
• the hinge
• the pan drive
• the camera head

It’s a dense intersection of structure and motion, and getting it right sets up everything that follows.

⸻

Why This Matters

When parts get dense like this, small mistakes compound quickly.

A hole placed slightly off, or a screw that ends up too close to another, can cause problems that are hard to fix later. This is the last easy moment to catch those issues before committing to material removal.

It’s also where design shifts from “does it work” to:

can it be built, assembled, and maintained in a practical way
